Agricultural Polycarbonate Greenhouse Venlo Dutch Greenhouse System for vegetables

Agricultural Polycarbonate Greenhouse Venlo Dutch Greenhouse System for vegetables

Introduction

‌

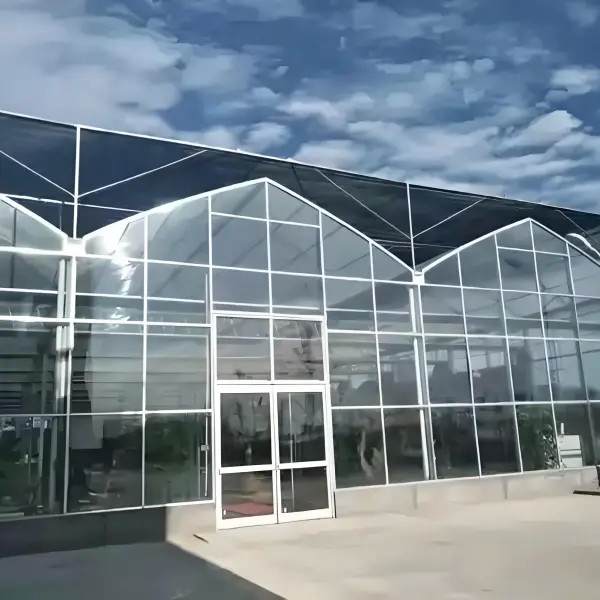

Polycarbonate greenhouses usually adopt a double-ridge Venlo structure type, with 8 mm high-quality double-layer polycarbonate panels on the top and sides, and a hot-dip galvanized rectangular tube as the frame.

The greenhouse configuration includes natural ventilation system, external shading system, wet curtain/fan cooling system, inverted micro-spray system, lighting system and power distribution system, etc.

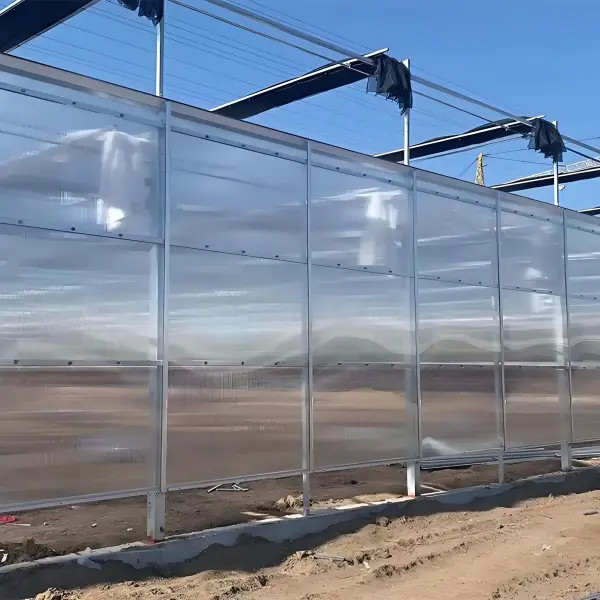

Polycarbonate cover has the characteristics of high light transmittance, impact resistance, heat insulation, fire resistance, etc., and is suitable for use in extreme climate conditions.

The light transmittance of polycarbonate can reach more than 85%, and it has good heat insulation performance.

Specifications

The main structure of the polycarbonate smart greenhouse mainly includes columns, purlins, side rails, arch frames, string trusses, rain gutters, connectors, special aluminum profiles, seals and fasteners, etc.

All materials are made of high-quality carbon steel that meets the Q235 national standard. Hot-dip galvanizing has good corrosion resistance and durability, and the service life can reach more than 20 years.

Wind load of the greenhouse is 0.55 KN/㎡

Snow load is 0.3 KN/㎡

Hanging load is 0.1 KN/㎡

Maximum rainfall is 140mm/h
